Brand: aplineusa

Compatible with Ford Fiesta VI 2013-2017 ACE-4 Model Roof Rack Black

Compatible with Ford Fiesta VI 2013-2017 ACE-4 Model Roof Rack Black

Regular price $187.61
Regular price Sale price $187.61
Sale Sold out
Shipping calculated at checkout.

In Stock

SKU:U01-UN-35-00-S_AC4-129*US

  • Compatible
  • Easy Return
  • Free Shipping

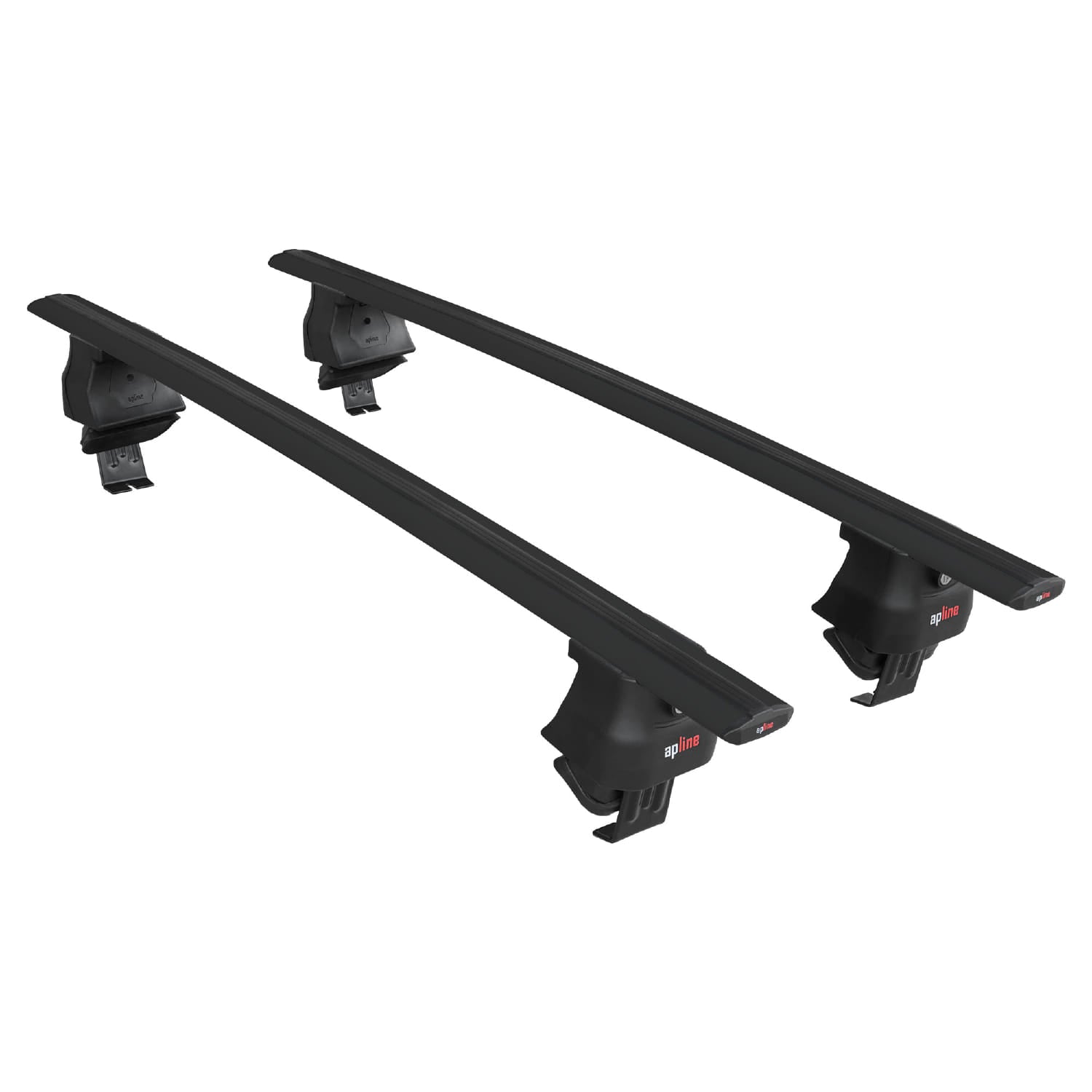

ACE-4 Model Intermediate Liner

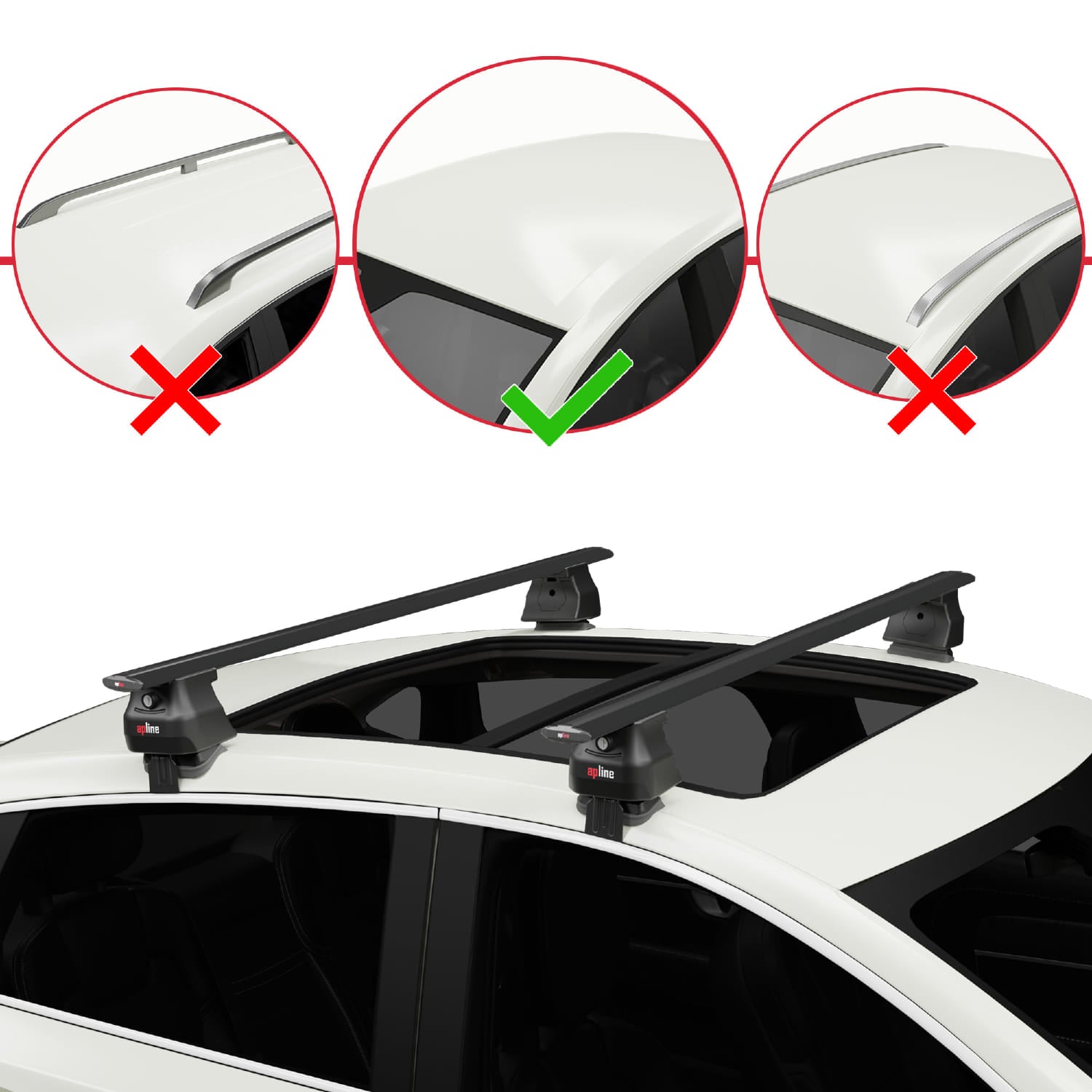

The ACE-4 Model Intermediate Lifting Strap is a vehicle-specific lifting system designed for vehicles without roof rails.

It is not compatible with vehicles equipped with roof rails. Different ACE series intermediate brackets are available for vehicles with roof rails.

The product provides a mounting infrastructure suitable for accessories such as bike racks, ski racks, and roof boxes.


The product features an aluminum body and PA6 GF30 mounting components.

Elastomer seals on the bar surface create a contact surface between the load and the bar. This design helps reduce slippage and noise caused by friction.

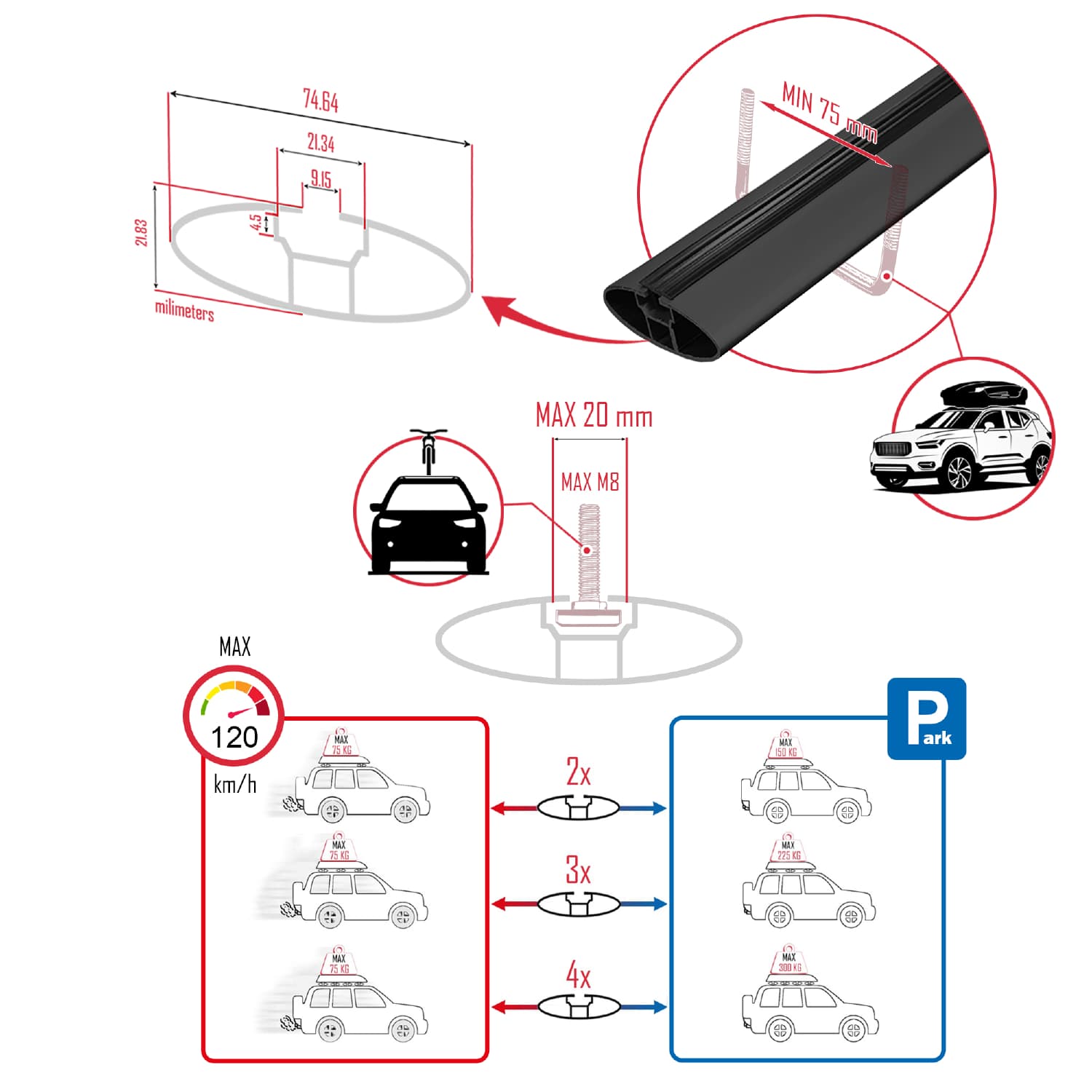

The aluminum bars feature a channel design compatible with T-Bolt fasteners.

The maximum dimensions compatible with the T-Bolt are: 20 mm channel width, 4 mm channel height, and an M8 bolt.

Aluminum bars with dimensions of 75 mm width and 22 mm height are also compatible with U-Type fasteners. If U-Type accessories are to be used, it is recommended to verify dimensional compatibility.


The product features a key-operated locking mechanism. A key is required for removal.

Before purchasing, ensure that the brand, model, and year information listed in the product title and images are compatible with your vehicle. The product is manufactured specifically for your vehicle based on this information.

Compatibility may vary with accessories from different brands or manufacturers. Therefore, it is recommended to verify technical measurements before connecting the accessory.

It is recommended that roof-mounted cargo carriers be removed from the vehicle when not in use, regardless of the brand.

The reason for this is that continuous use while mounted increases air resistance. Increased air resistance can lead to higher fuel consumption and increased wind-induced noise.


Applications

Sports & Hobbies: Can be used with many standard accessories such as bike racks, canoe, and kayak mounts.

Family Use: Creates additional cargo space with a roof rack.

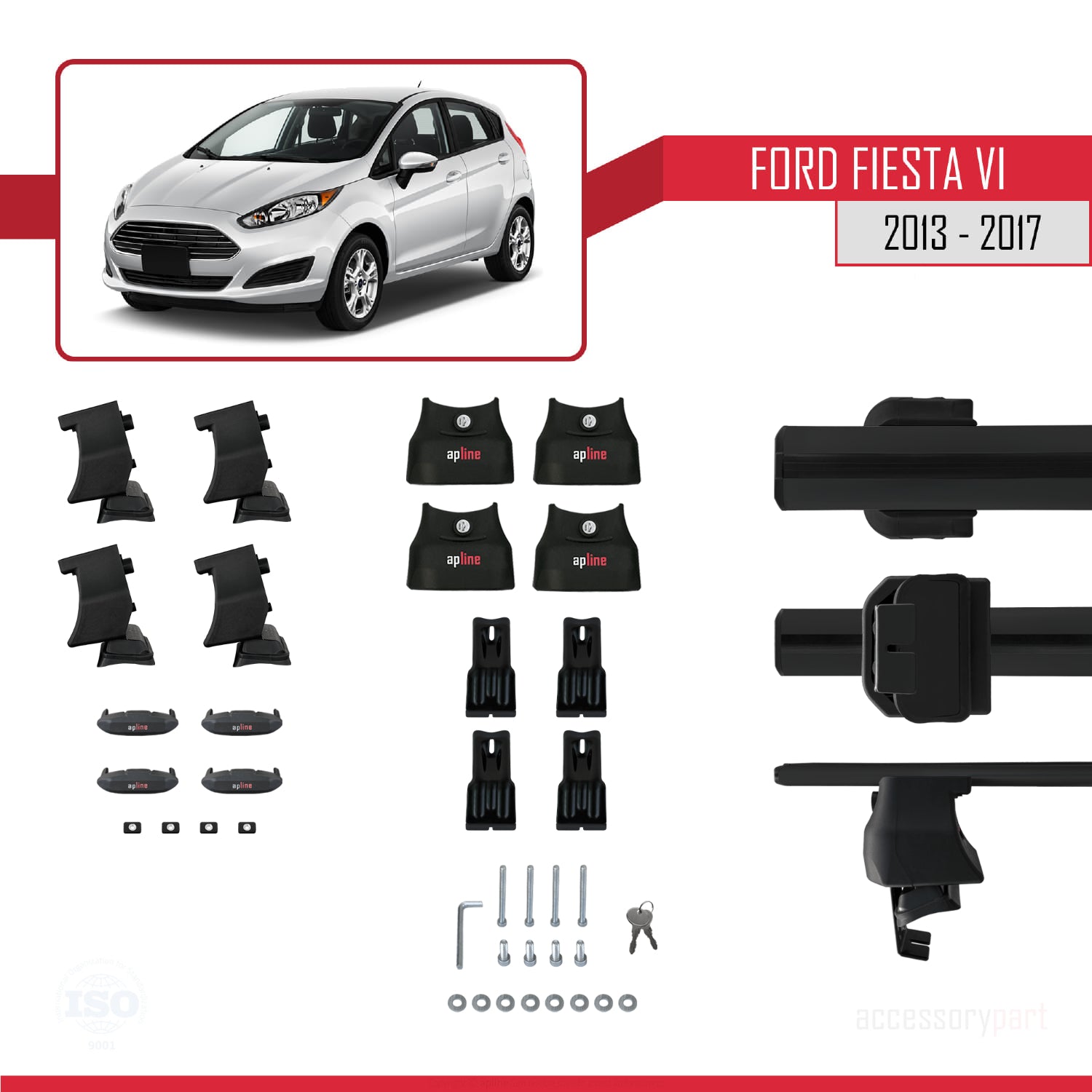

Box Contents

Aluminum bars

Mounting kit
